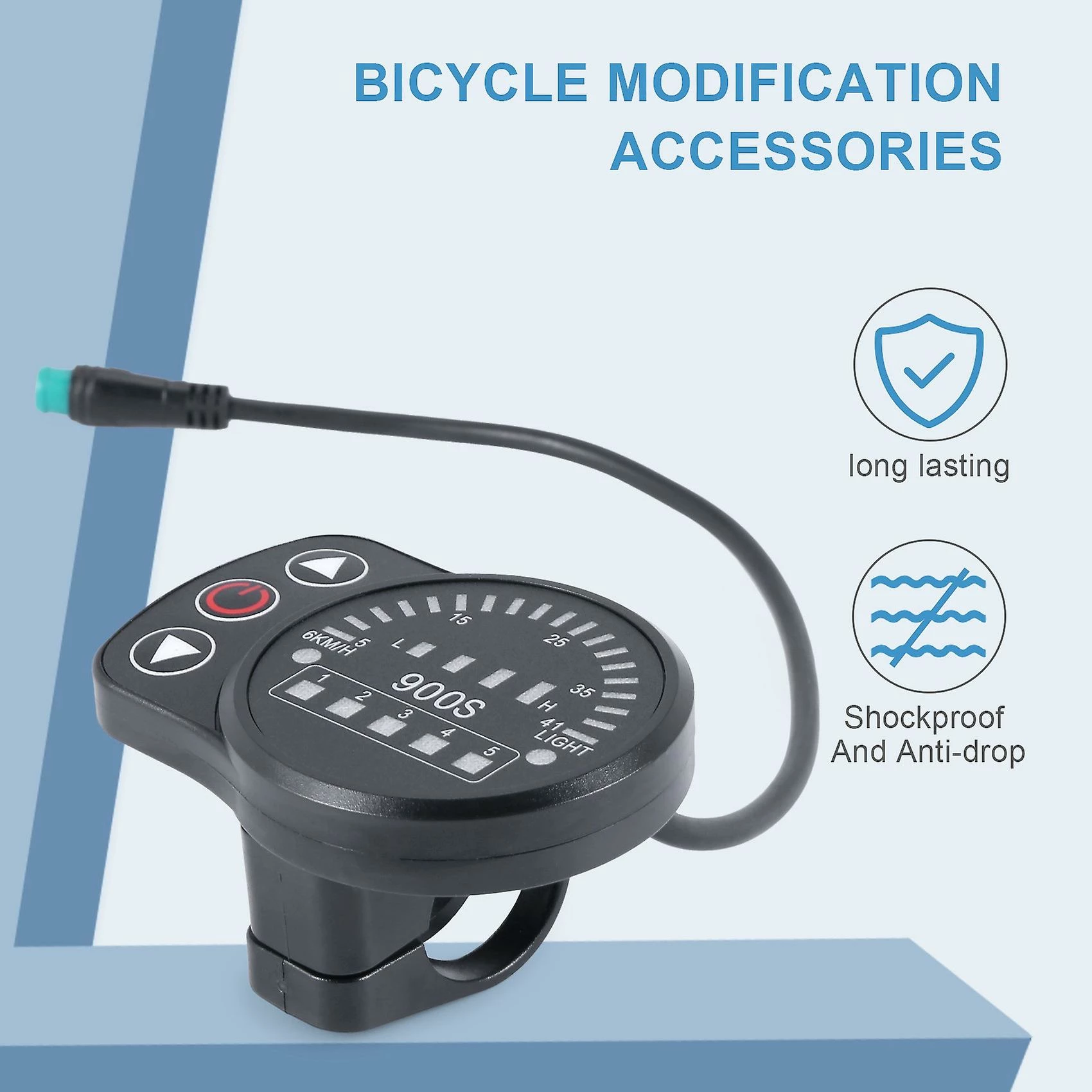

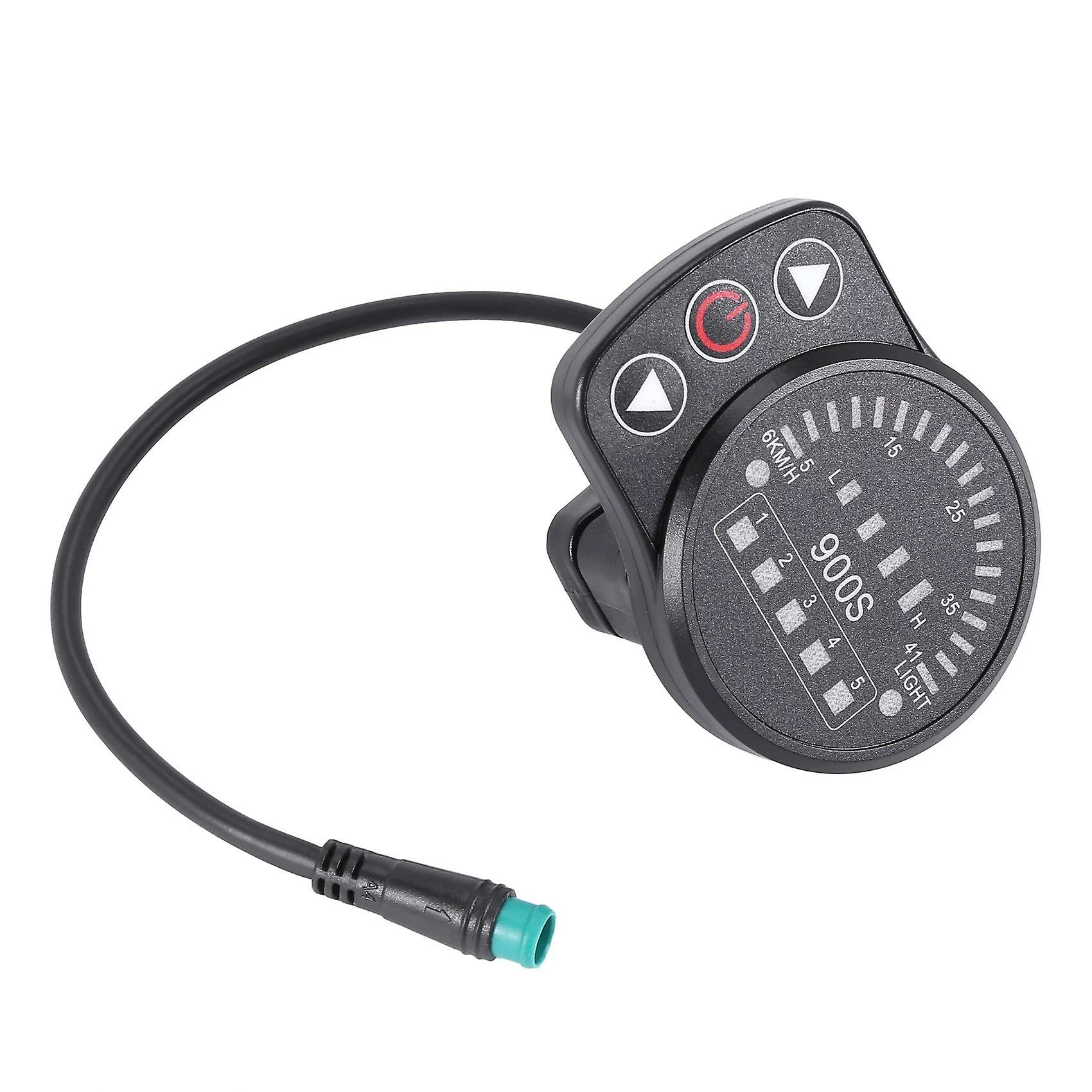

Unbranded Kt-900s E-bike Led Display Meter Connecteur étanche Display Code Table Universal 24v / 36v / 48v Elec

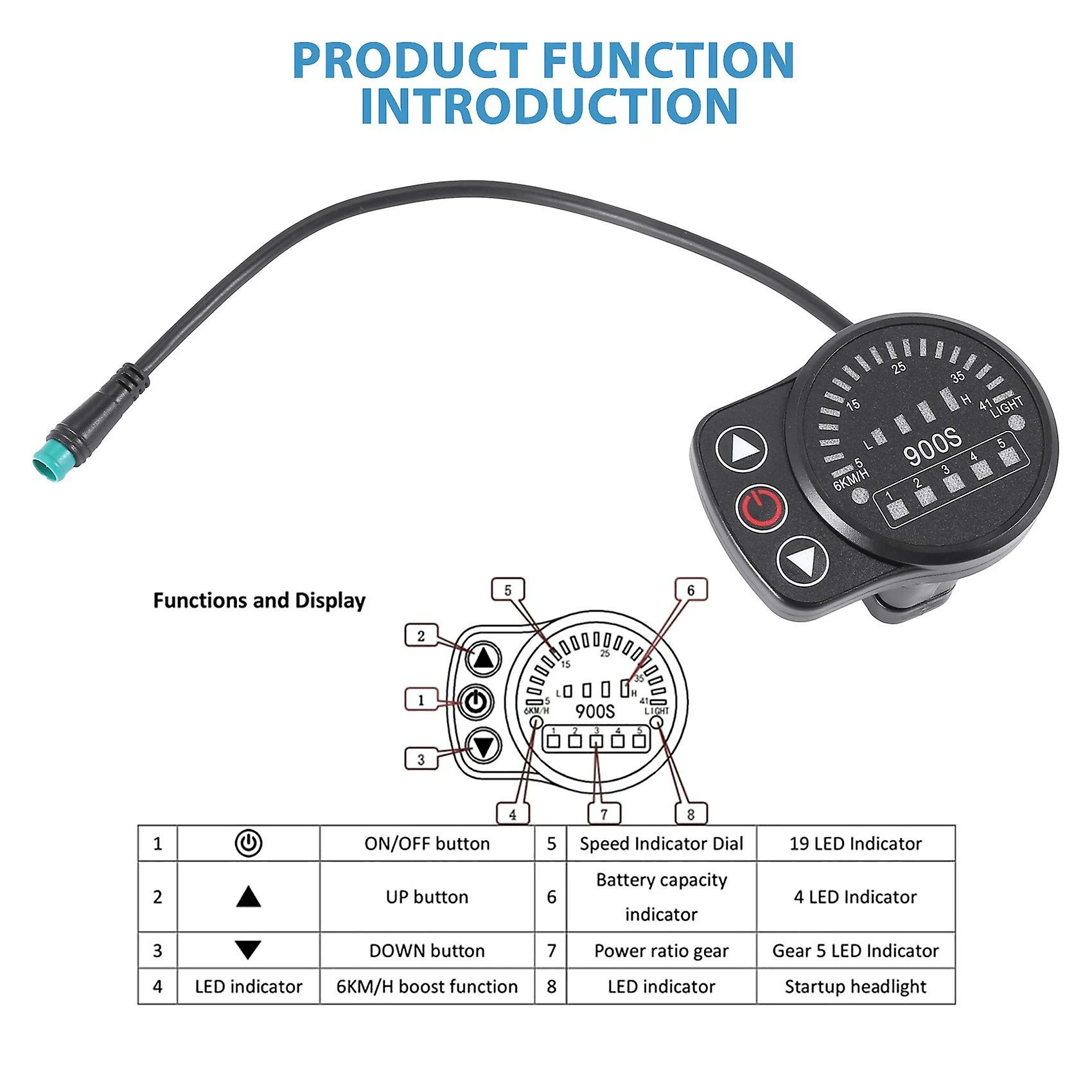

1. Nineteen-segment LED speed indicater,showing speed 0-40km/h

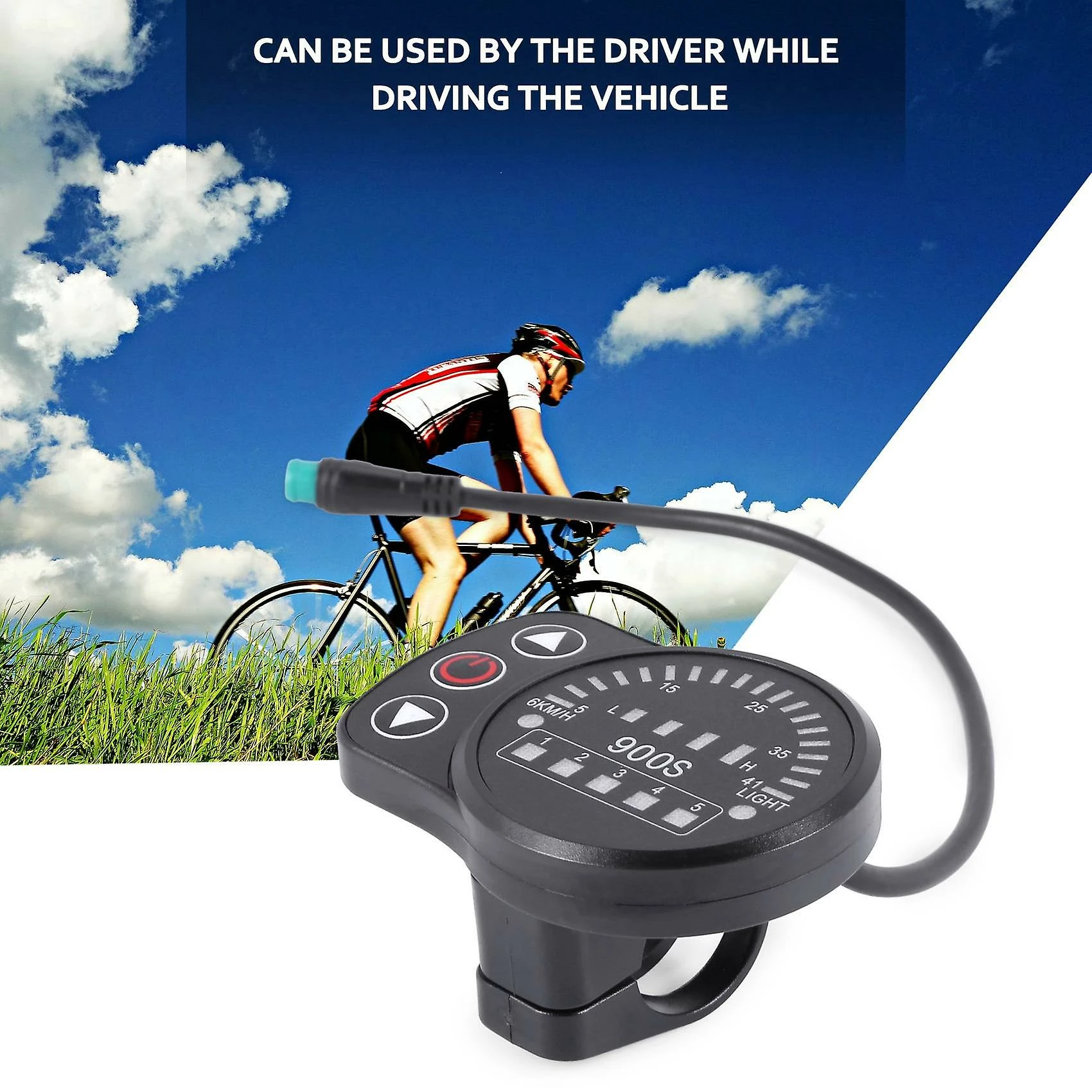

2. 6Km/h boost function, and the boost light is blinking during boost, it can be used by the during driving a vehicle, and the vehicle driving will be easy;
3. 1-5 PAS level+Four LED battery capcity showing.
4. Parameter setting and copy.interchangable with other KT LED or LCD.

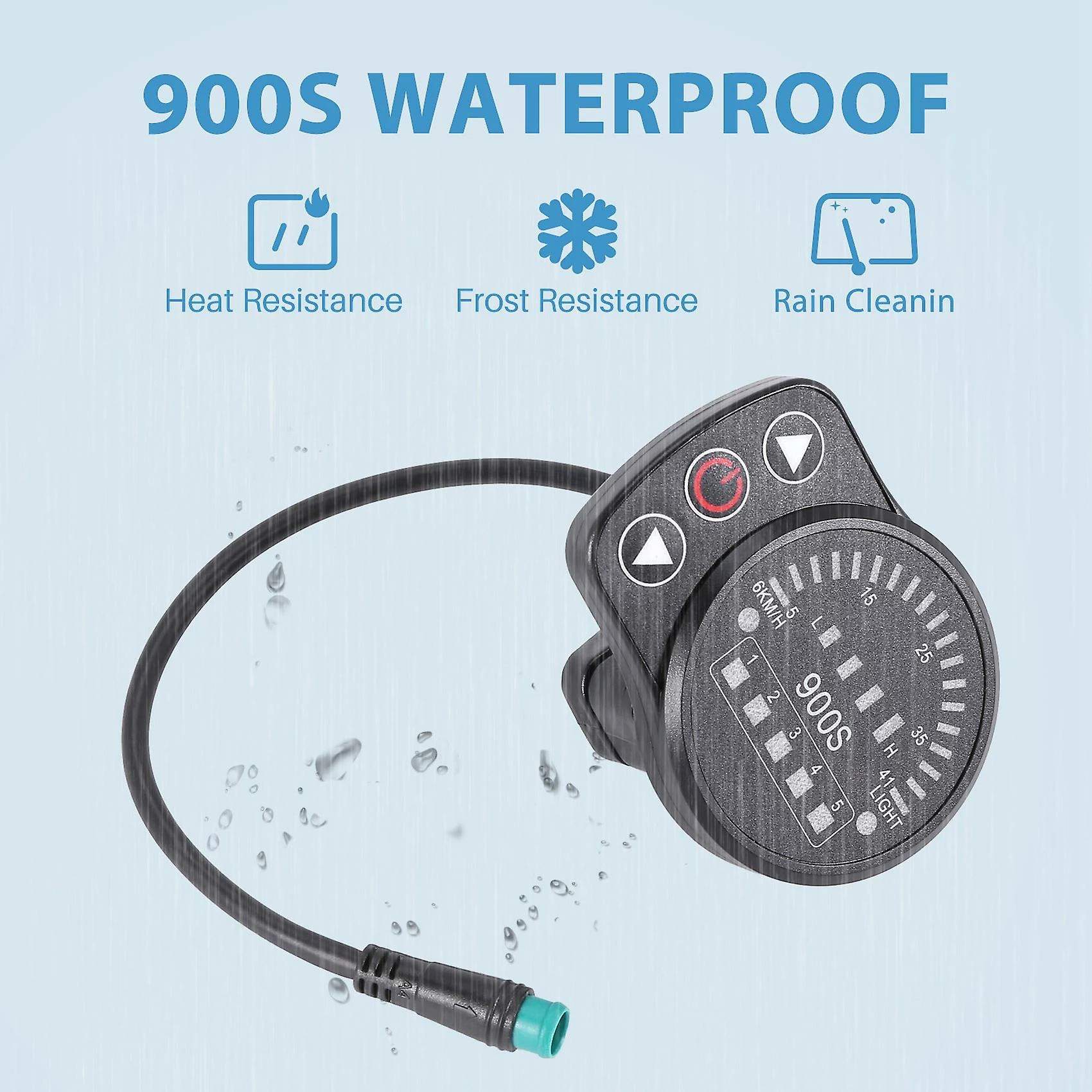

5.900S waterproof:5pin Waterproof connenctor.Wire length:about 200mm with connector .Cannot connected with controller directly. on a 1in4 bus cable.
1. Compare with LED900 and LED900S .900S could show current speed the speed cannot over 41KM/H
2. ON/OFF function of power supply, it will automatically shut down after standby for 5 minutes;
3. Four-bit intelligent power display can be a true reflection of the state of battery charge to the distance;
4. -gear of high, middle and low imitated boost switch gears and gear indicator display, with gear memory function, power on can automatically the gear state during power off;
5. Under-voltage indication function, when the battery is in under-voltage, the under-voltage indicator flashes;
6. The headlight switch control function, and it can turn lights, when headlights are turned on, the headlight indicator is lit;
7. The adoption of – line of digital communication is with a self-setting function of versatile parameters, users can adjust the such as motor parameters, parameters, speed parameter according to different models;
8. The instrument is with good interchangeability, and different instruments can directly exchange with each other and copy the data parameters;
9. Supply voltage of 24V, 36V, 48V can be automatically identified and compatible;
Material:ABS
Colour:black
Package Contents:
1 * Bicycle LED Display Meter
1 * Manual
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
