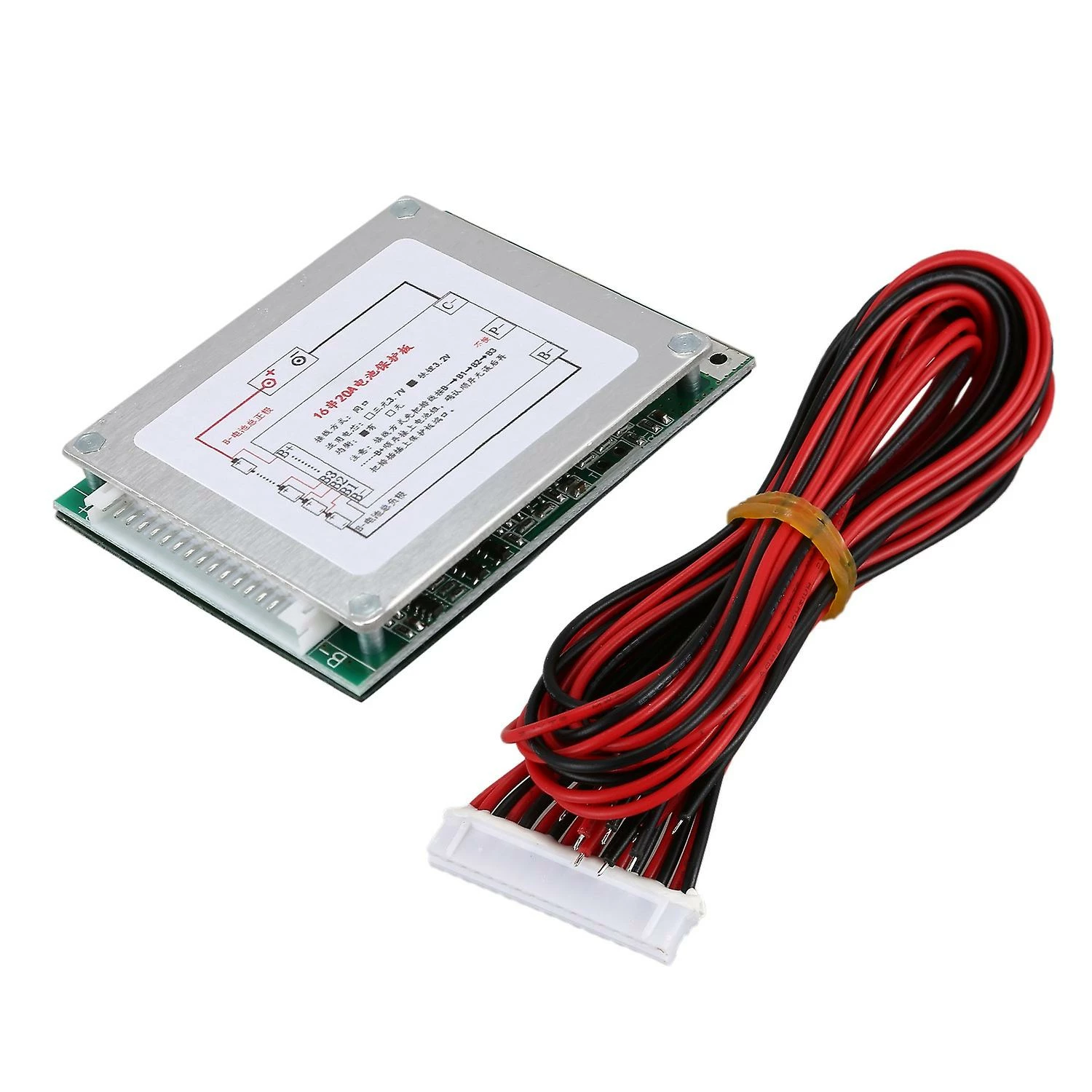

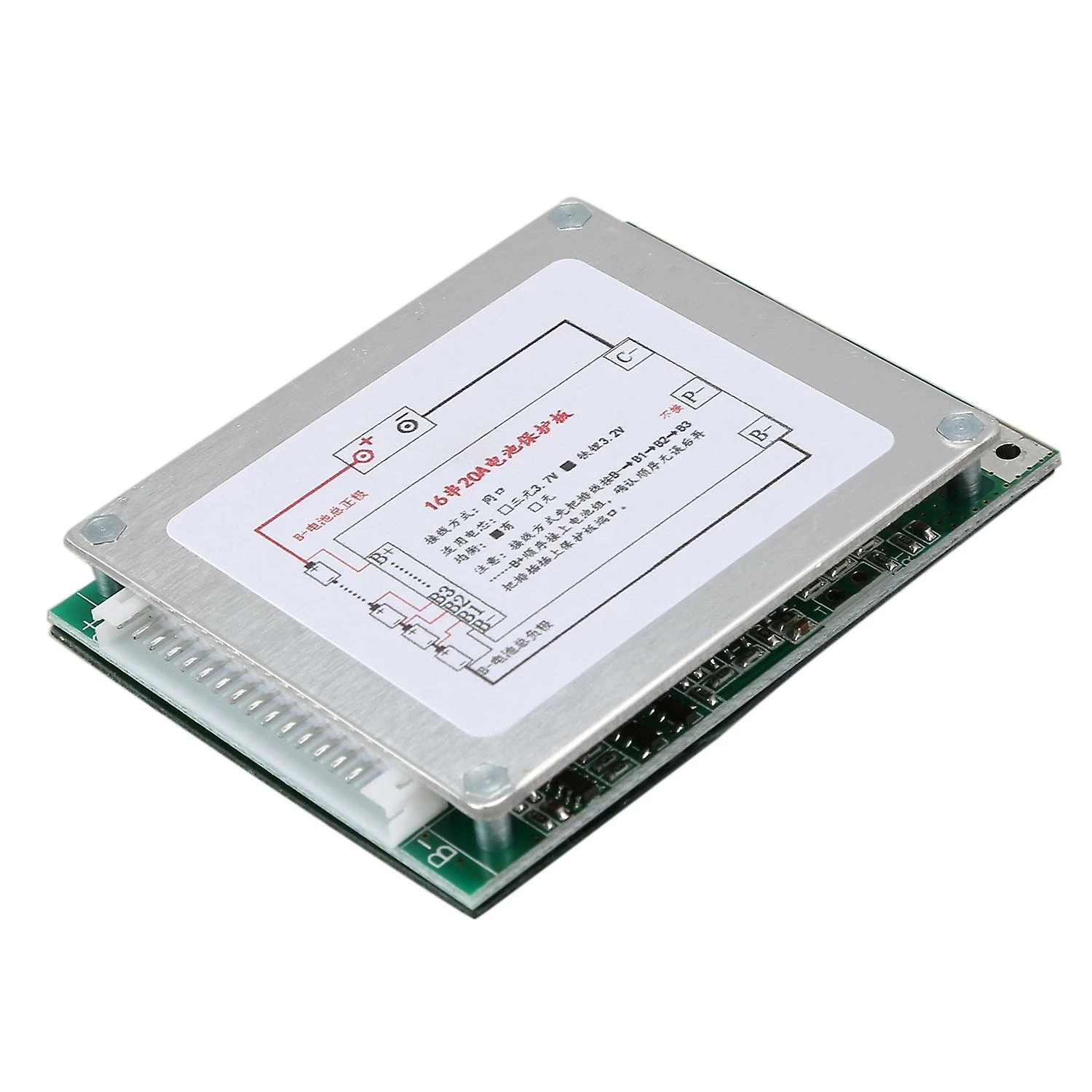

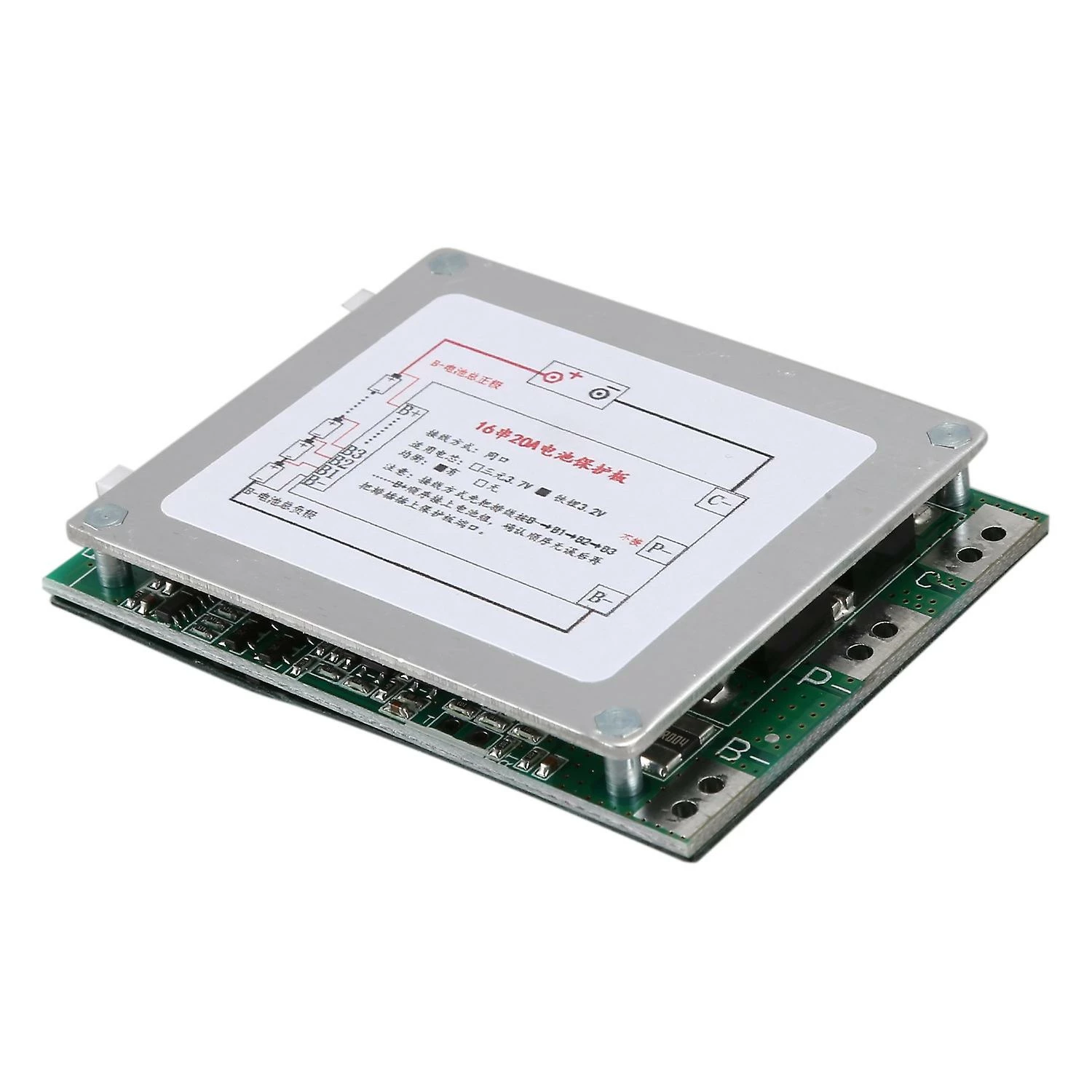

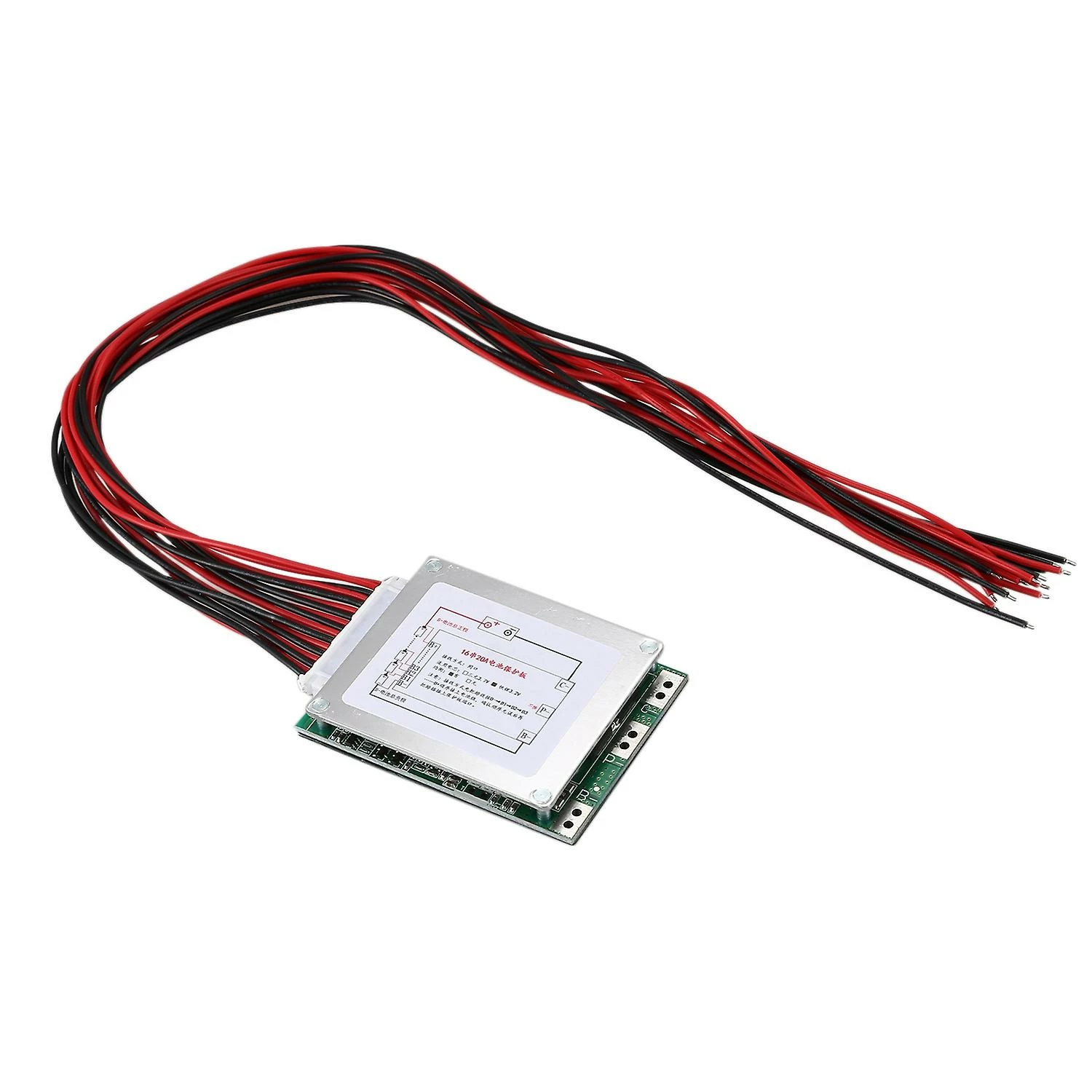

Unbranded 16s 48v 20a 18650 Lifepo4 Batterie Protection Board BMS Pcb Avec Balance Pour E-bike Escooter

16 string 48V LiFePo4 battery protection board. With equalization, the same port 30A, 4-16 string universal, can be directly downgraded.Scope of application: 18650 lithium battery protection board, scooter, drift car protection board, solar street light, LED protection board, motorcycle lithium battery protection board, tricycle power protection board, backup power lithium battery protection board.Continuous Discharge Current: 20AInstantaneous discharge current:100ACharging voltage: 60VMaximum charging current: 20AOvercharge detection voltage: 3.75 +/- 0.025VOvercharge protection delay: 100msOvercharge release voltage: 3.6 +/- 0.05VBattery balance detection voltage: 3.6 +/- 0.025VBattery balance release voltage: 3.6 +/- 0.05VBattery balance current: 40 +/- 5AOverdischarge detection voltage: 2.1 +/- 0.08VOverdischarge detection delay: 100msOverdischarge release voltage: 2.3 +/- 0.1VOvercurrent detection voltage: 200mVOvercurrent detection delay: 15msOvercurrent protection current: 120 +/- 20AOvercurrent protection release condition: disconnect loadShort circuit protection condition: external load short circuitShort circuit detection delay: 200uSShort circuit protection release condition: disconnect loadMain circuit conduction internal resistance: Less than or to 15 mohmWorking current: Less than or to 60uASleep current (when the battery is over-discharged): Less than or to 10uATemperature range: -30/+80 CelsiusColour: silver + greenMaterial: metal + PCBSize: 63*33*10mmPackage Contents:1 x – Battery Protection Board1 x terminal linesOnly the above package content, other products are not included.Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
